A marathon day of boat maintenance

If you’ve been following me on social media (and if you haven’t, why not? πŸ˜†) you’ll know that Sanitas has been experiencing a real run of bad luck lately. Pretty much every day we’ve found something new that’s broken, worn out, or just downright failed. There’s a saying, “Everything on your boat is broken. You just don’t know it yet.” And that’s certainly how it’s felt since we returned to Grenada this fall. After more than a month of playing Whack-a-Mole and trying to fix each problem as it cropped up, things finally came to a head this week.

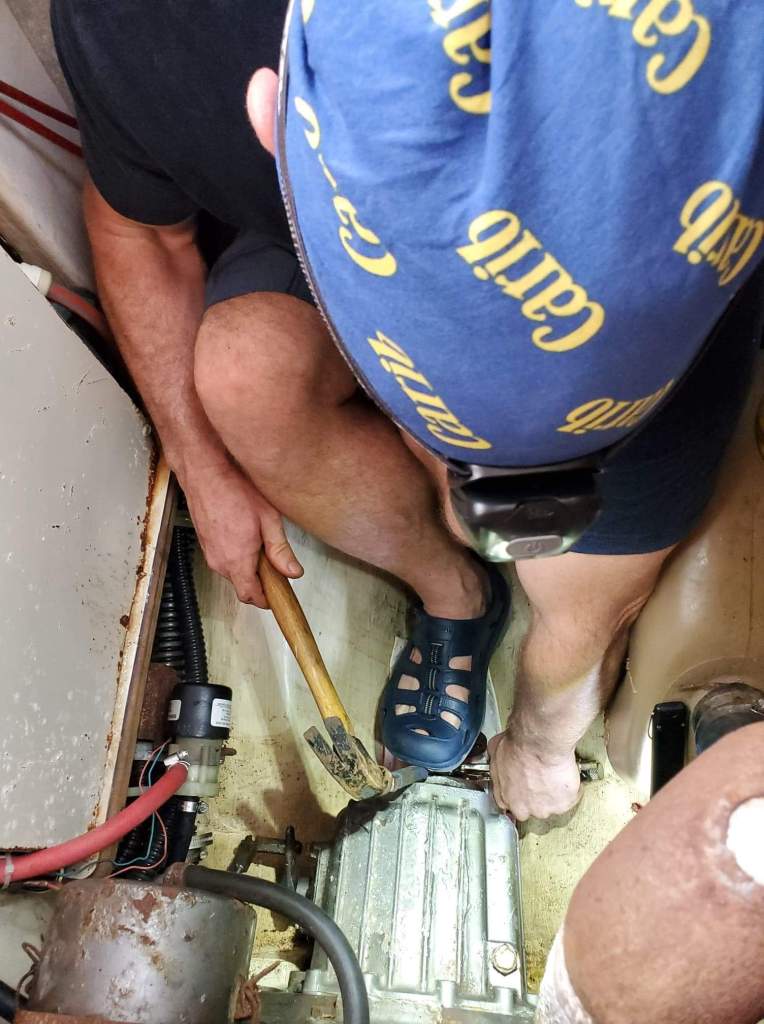

Capt. Mike inside the engine compartment
The list of surprise boat projects we’ve had to address since we splashed on Nov 1st

Our most serious issue so far has been a  leak in our transmission. This isn’t one of those leaks that you just monitor and hope it doesn’t get worse. This is one that prevents us from using the engine (for propulsion) for more than 15 minutes at a time and then requires pouring in another half quart of transmission fluid. If we blew the transmission completely, that would also blow our budget for the year, and maybe cut our sailing season short. Capt Mike has done tons of research and ordered parts to replace the rear shaft seal from the USA (that’s another whole blog post) and did everything in his power to fix the darn thing himself while we were afloat in Prickly Bay. To no avail! There just isn’t enough room to take the transmission apart to fix it without either lifting Sanitas’ diesel engine, or removing the prop to gain that half an inch of space we desperately need.

And so here we are. Back in the boatyard of Spice Island Marine almost exactly one month after we splashed. We made it harder on ourselves this time. Since our transmission was in pieces, we enlisted two of our cruiser friends, Dave on BooRie and Zach on Holiday, to serve as tow trucks and tug boats to bring us into the yard without a motor. They did amazing! Especially considering that when we showed up at our scheduled time, expecting a straight shot into the haul-out slip, the crew waved us off and forced us to side tie to a concrete wall first to wait for another boat to splash. Jeez Louise! Sanitas is not very maneuverable at the best of times, but under tow? Capt. Mike says he hasn’t experienced his heart pounding that fast during docking since our first season as sailors!

Our dinghy tow

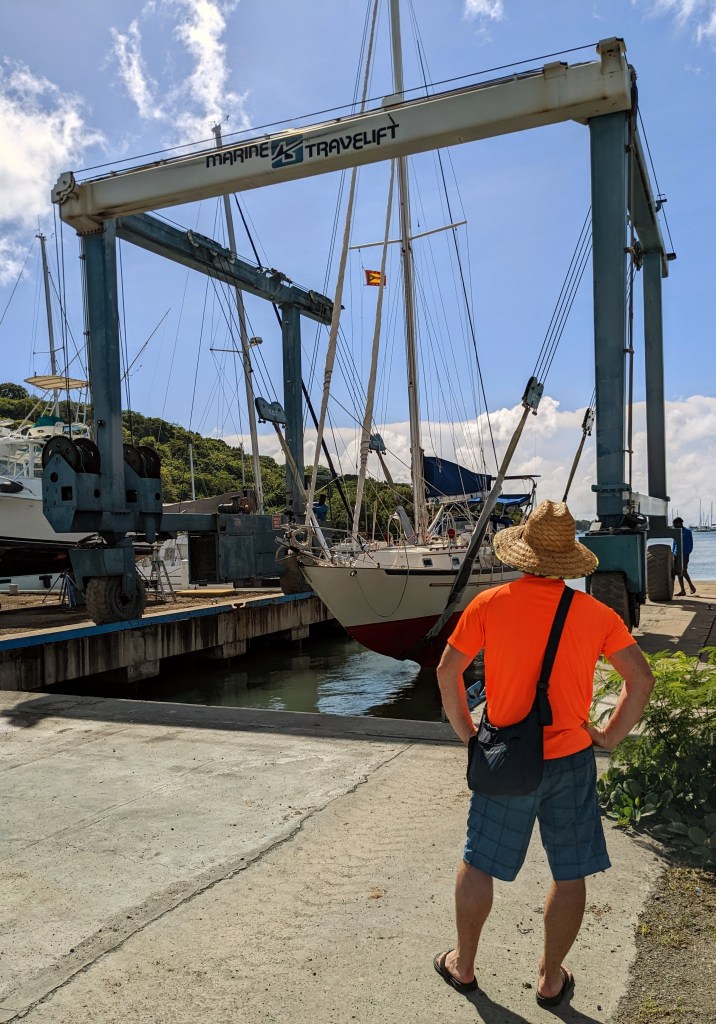

Here we go again

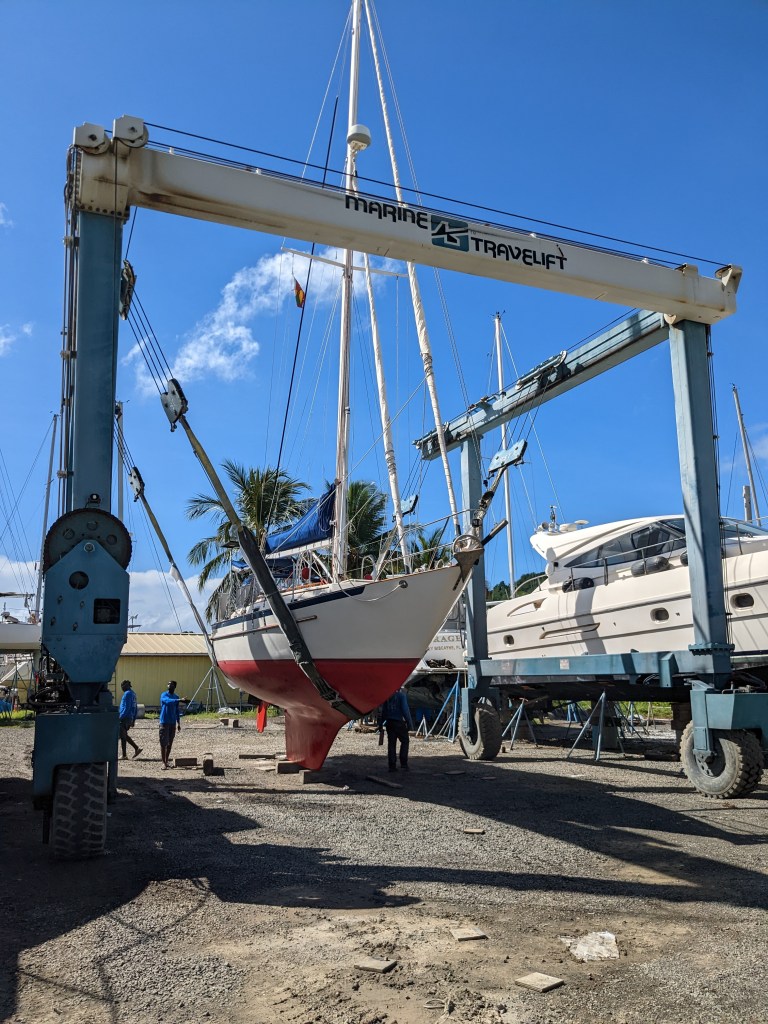

At least the bottom pain still looks good

Once the crew hauled us out of the water and put us up on stands, Capt. Mike went to work. He removed our fancy MaxProp after making a few marks on the outside with my brightest nail polish in hopes he’d be able to put it back together again the same way. Returning to the engine compartment, he slid the shaft as far as it would go, until we could hear the shaft hitting the rudder. Success! With the prop removed, he had enough space to disassemble the transmission. Phew! I was afraid we’d have to drop the rudder too!

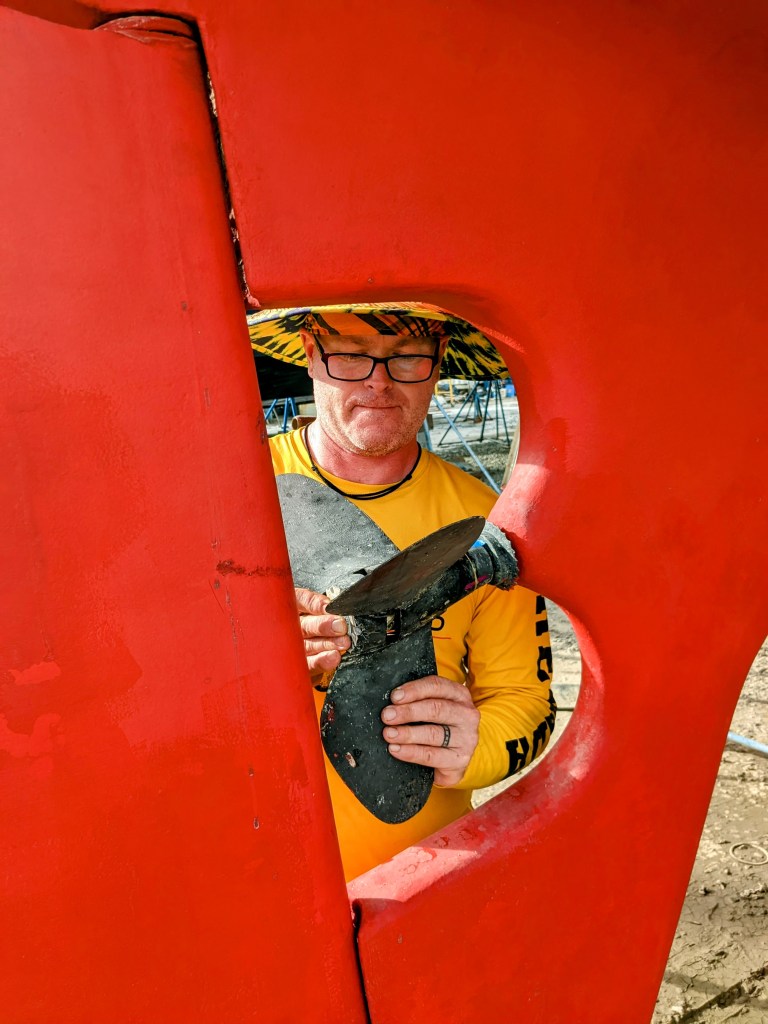

Strange to see the prop on the work bench
There’s a lot going on in a prop!

Using a tool he made from scratch (saving us a few hundred dollars) he removed the nut from the rear of the transmission, pulled off the rear seal, and surveyed the damage. Sure enough! It was easy to see where the seal had failed.

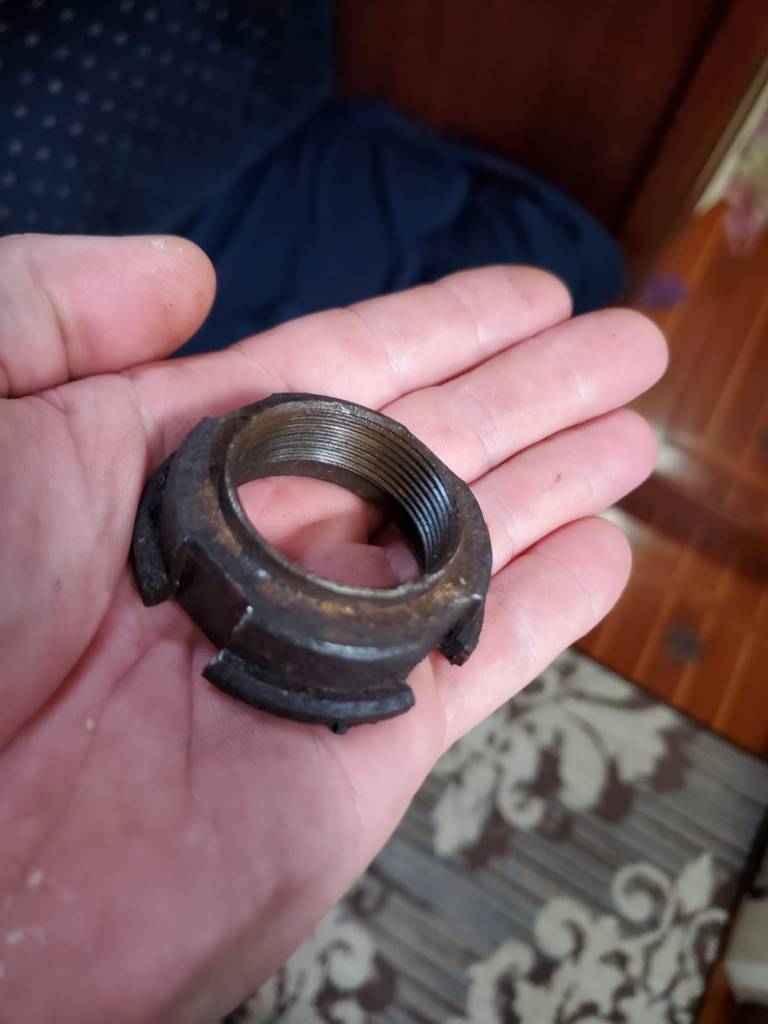

This keyed lock nut was a bear to remove

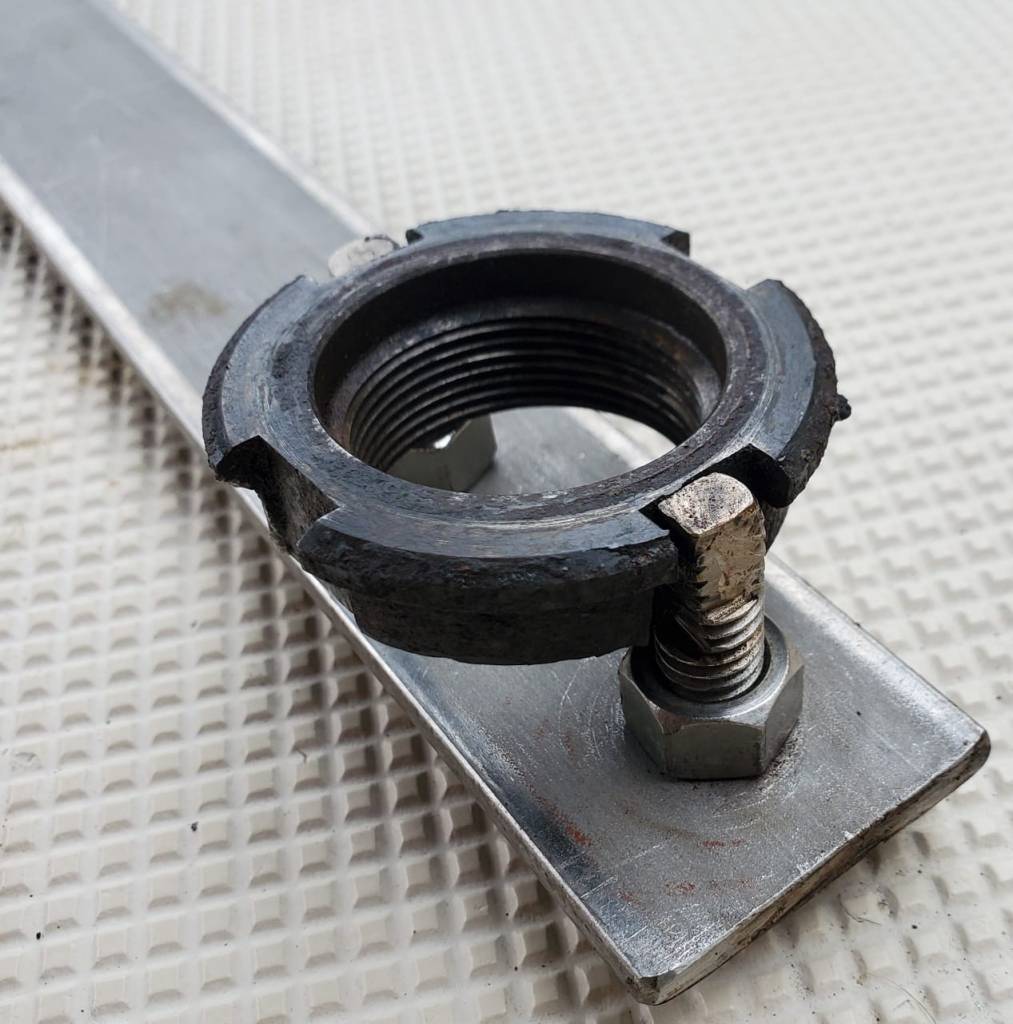

Et voila! Mike’s homemade tool

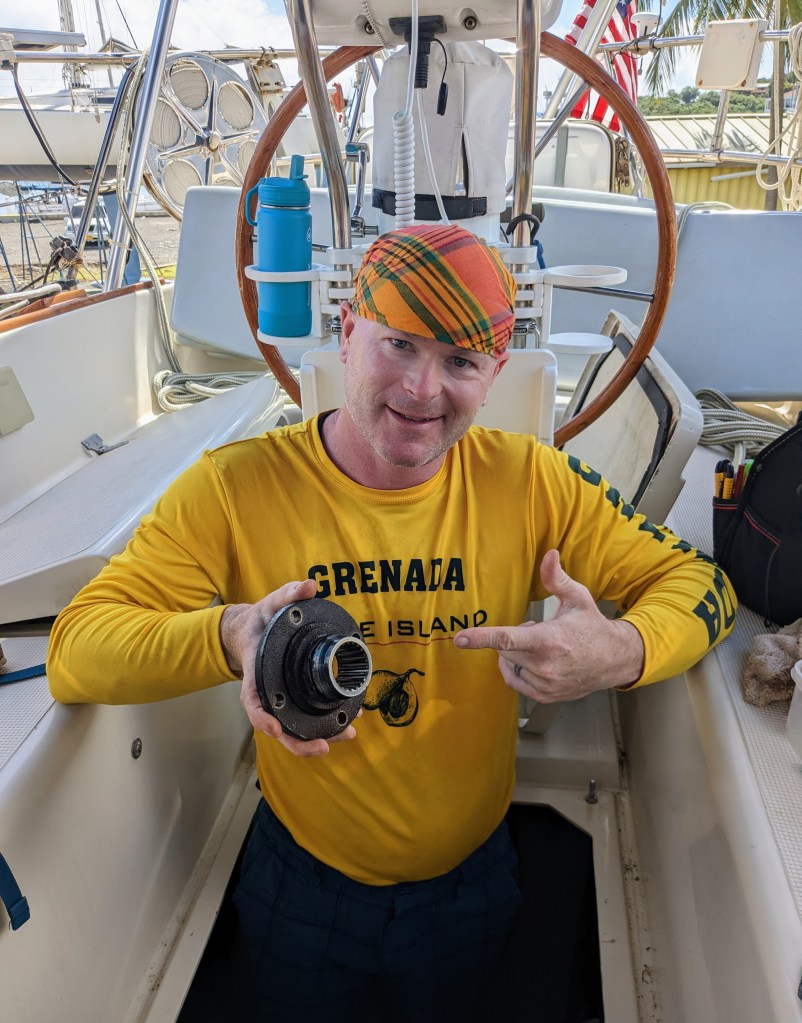

Success! Here’s the rear transmission seal

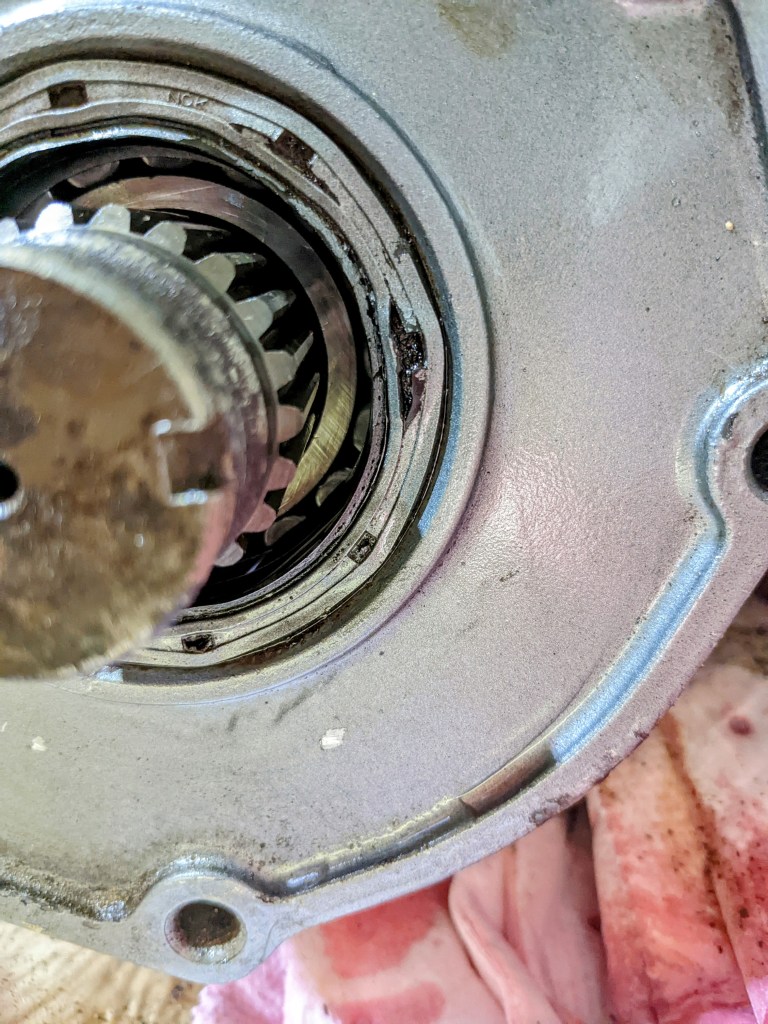

Can you see the busted seal?

After replacing the seal and the o-rings, and refilling the transmission fluid (and cleaning up the huge mess) Capt. Mike considered the transmission repair a success. Hooray! Next trick, putting the prop back together… While we had it all apart, Mike took the opportunity to reduce the pitch of the prop blades from 20 degrees down to 18 degrees. We’re really geeking out here, but apparently when the prop is over-pitched it creates too much resistance when cutting through the water and prevents the engine from achieving maximum rpms. For the geekiest of MaxProp geeks, 18Β° means X=E, Y=H. You’re welcome πŸ˜†

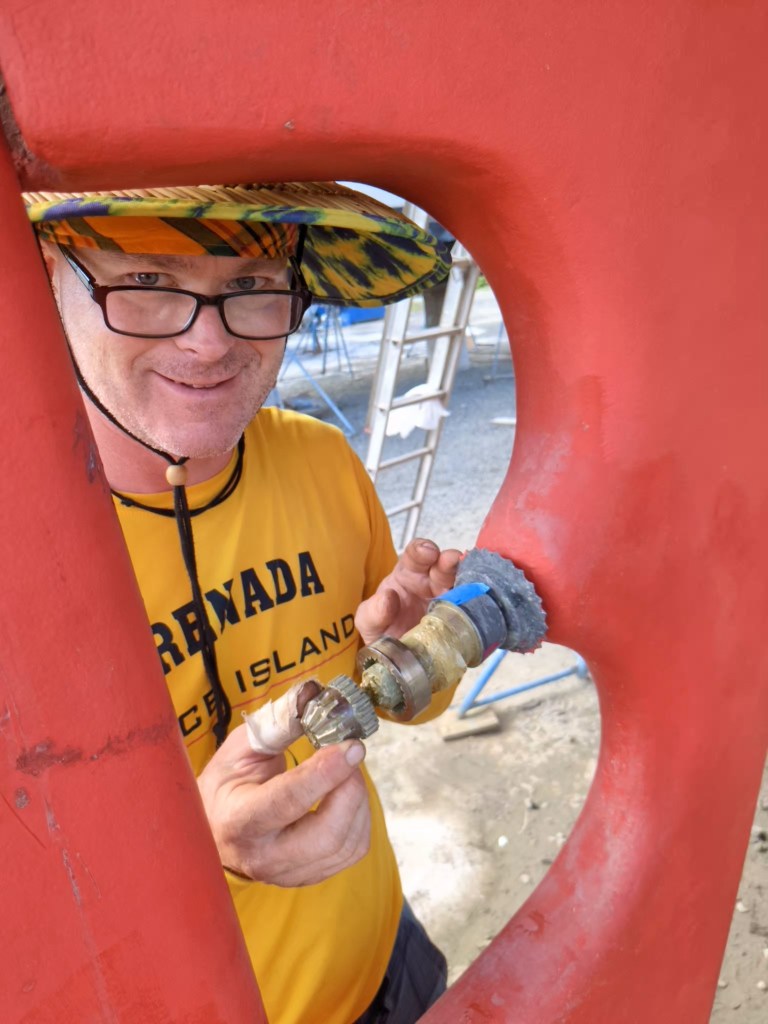

Now let’s see if he can put it back on
Concentrate!

The final job for our stay in the boat yard required a trip up the mast to replace the spreader light. I find it kind of scary to hoist Mike up the mast in the yard – if he falls, he falls onto solid ground instead of water. But the Captain tells me I’m thinking of it all wrong. He says it’s much easier, and less scary, to work on the mast when the boat’s not moving. Makes sense I guess.

Don’t look down!

It stinks that we had to spend so much time making repairs and waiting for critical parts this year. And it was quite the unexpected expense to haul out again 😳 But I’m very impressed with Capt. Mike’s research and preparation that allowed us to accomplish all of this work in 24 hours, getting us back in the water with a (hopefully) fully functioning motor and transmission as quickly as possible. Now let’s go sailing!
